DAQAHRS-MK19 AHRS/IMU WITH ARINC 429 / SATCOM ANTENNA STEERING

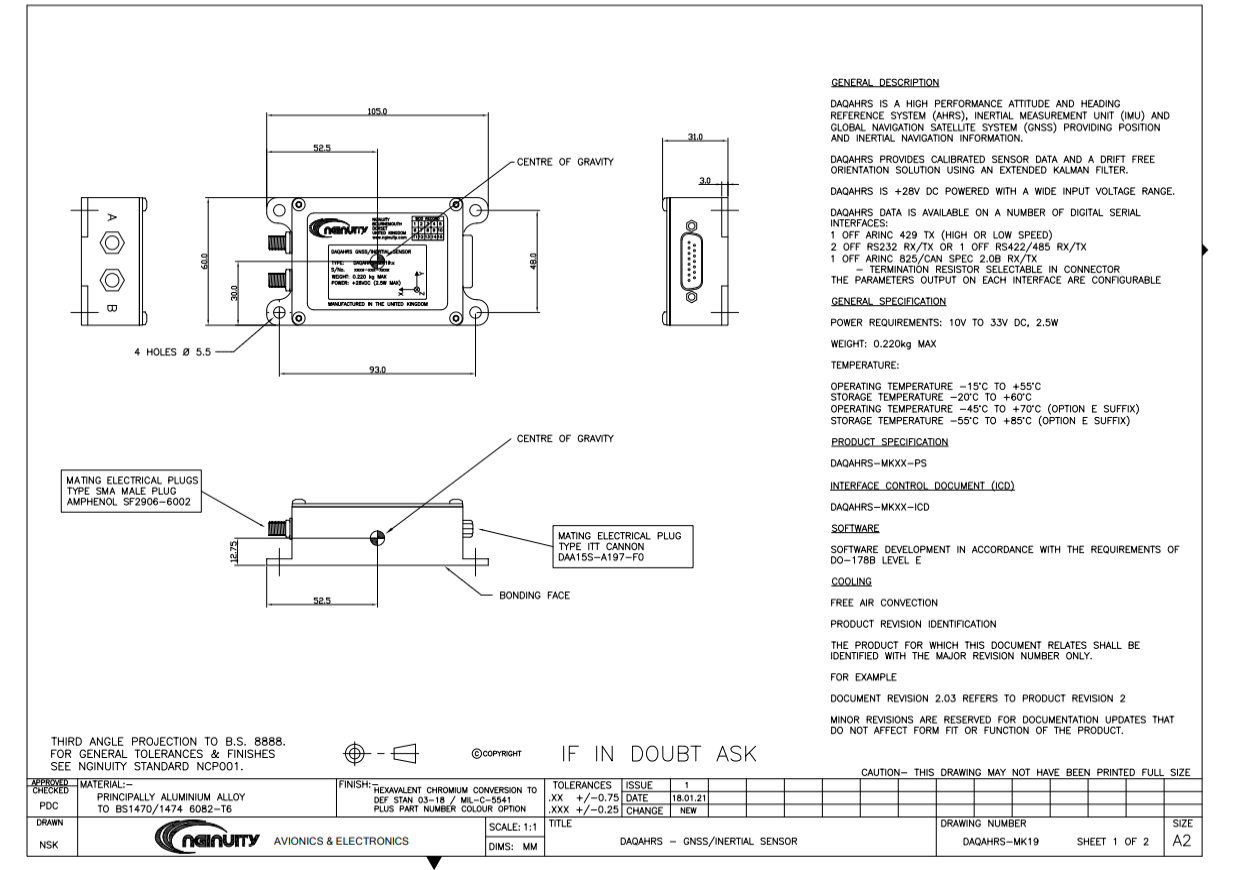

DAQAHRS-MK19-R1

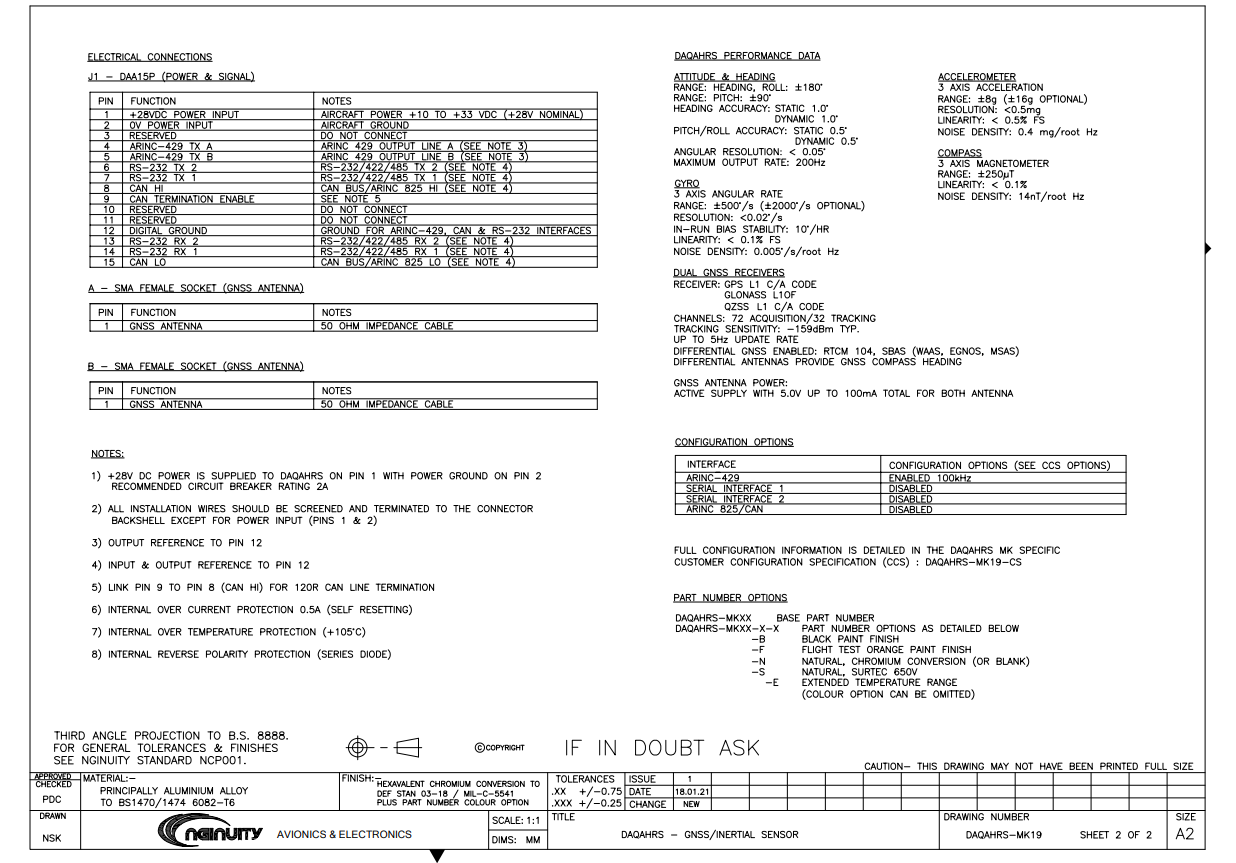

DAQAHRS-MK19-R1

DAQAHRS IS A HIGH PERFORMANCE ATTITUDE & HEADING REFERENCE SYSTEM (AHRS), INERTIAL MEASUREMENT UNIT (IMU) & GLOBAL NAVIGATION SATELLITE SYSTEM (GNSS) PROVIDING POSITION & INERTIAL NAVIGATION INFORMATION.

SERIAL INTERFACES:

ARINC 429 TX (HIGH OR LOW SPEED)

RS232 RX/TX OR RS422/485 RX/TX

ARINC 825/CAN SPEC 2.0B RX/TX

S: 105MM X 60MM

W: 0.220kg MAX

P: 10V TO 33V DC, 2.5W

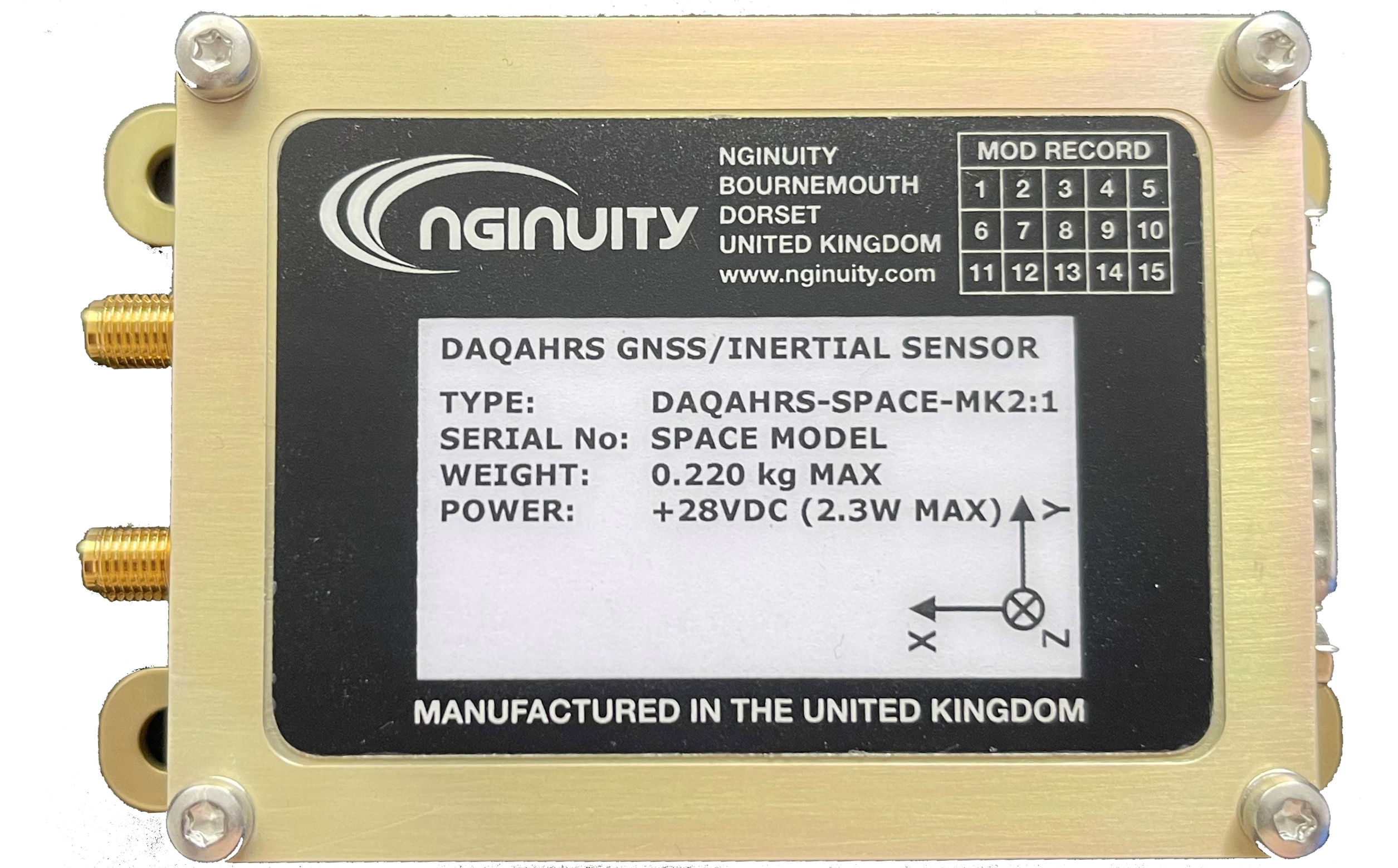

Inginuity DAQAHRS MK2.1 cropped transparent
